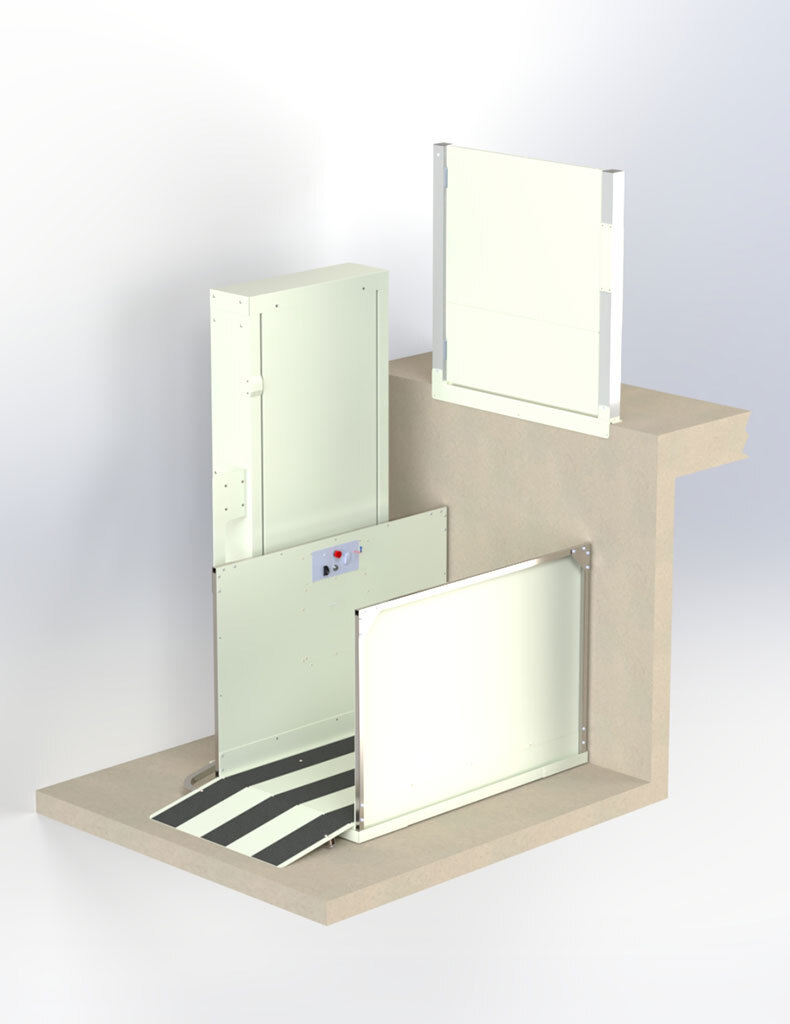

SPECIFICATIONS FOR SHC BRIDGER VERTICAL PLATFORM LIFT (Model VPL25) 5.15.25

Manufacturer: Staying Home Corporation (SHC), 2501 Anaconda Rd., Harrisonville, MO 64701
SHC is a Licensed Missouri Elevator Contractor Phone: 816.380.2427

Lift Application: Any single-family home or residence serving 2 floors with a maximum lift height of 60”’. This product is designed to meet all A18.1 codes for residential applications when properly installed.

1. Footprint: 72” with ramp x 47”. The platform will handle most wheelchairs and/or riders up to 600 lbs capacity.
2. Platform size is 34” wide (32” inside) x 54” long.
3. Dual rack and pinion drive system with single shaft.
4. Constant pressure controls on rear guard rail — up, down, key-switch (optional), E-Stop, not needed for code, diagnostic LED light, call-sends (optional).
5. Battery powered with 24 VDC system. Design precludes any special outlets having to be wired into the home — eliminating need for a dedicated outlet to be installed in home.
6. Steel tower construction — steel platform, steel guard rails, steel ramp construction.
7. Battery charges during full travel of unit.
8. 500 Watt motor.
9. Designed to meet A18.1, Part 5 Residential Vertical Platform Lift when properly outfitted and installed.
10. AWS certified welders.
11. Meets NEC standards for wiring.
12. Powder coated unit — RAL 9002 Gray/White Std.
13. Designed, tested, and assembled in U.S.A.
14. Call-sends (optional): enable person to call or send unit to either landing.

15. Safety pan under platform. Stops travel if 4 lbs. or more of force is exerted underneath car.
16. Type A overspeed safety.
17. Top landing gates (optional) or door interlock available for upper landing.
18. Emergency unlocking device for door lock/gate.
19. 36” high guard rails — double as handrail.
20. UL Listed door interlock — senses door is both closed and locked before allowing unit to operate.
21. Regular and final limit switches.
22. Open door sensor.
23. Constant pressure controls put operation in the hands of the user at all times.

24. Unit comes pre-assembled and tested. 2-hour installation time for 1–2 people.
25. Tower is capable of being free-standing.
26. Only maintenance — replacement of batteries in unit every 2–3 years, lubrication of gear rack every 6 months.
27. Can mount directly to existing concrete or stud walls.
28. U.S.A designed, manufactured, and technical service support.
29. No pit, no machine room, no dedicated outlet required.
30. Electrical requirements are 110 volt, 2 amps.
